5% off

ACF Pressure Blasting Device SR, 50 or 90 Liter, very robust design, also available as a complete set with protective equipment

Tax-free EU delivery after VAT ID number verification at checkout

Free shipping within Germany for orders over €99

ACF France | SKU: S 461

€4.465,48 €4.700,50

Tax included Shipping calculated at checkout.

Capacity (Liters)

50 90

SET - Beam Hose Length (m)

without 10 20

Delivery time approx. 4-6 working days

Finanzierung für diesen Artikel ab – / Monat

Questions & Help

Do you have questions about one of our products or would you like professional advice on selecting the solution suitable for your application area?

No problem, give us a call! Tel. +49 (0) 2551 5030

Send us an email! shop@strahltechnik-express.de

Use our online chat or the contact form

Leasing & Hire Purchase

We offer exclusively for entrepreneurs, traders, and self-employed individuals financing options leasing and hire purchase for selected products starting from a net goods value of €1,000. Below you will find the essential differences between both financing forms.

Leasing

In leasing, the product is made available to the lessee for use against payment of regular leasing installments. The accounting is done by the lessor. The leasing installments can usually be claimed as business expenses for tax purposes. These are gross installments, and value-added tax is incurred throughout the entire term. After the agreed basic rental period, acquisition of the product by purchase is generally possible.

Hire Purchase

Hire purchase is economically equivalent to a installment purchase. The product is activated in the balance sheet of the hire purchaser and depreciated according to the official depreciation tables. Upon payment of the last hire purchase installment, ownership of the object transfers to the hire purchaser. The value-added tax must be paid in full with the first hire purchase installment (pass-through item).

Shipping & Delivery

The shipping of our goods depends on size, weight, and nature, either via parcel service or via freight forwarding. The choice of shipping method is made by us at our discretion.

The delivery times indicated in the online shop are non-binding estimates, unless a binding delivery date has been expressly confirmed in writing. They are based on the information available from our manufacturers, suppliers, and logistics partners at the time of the order.

A large part of the products offered is shipped directly from the manufacturer or from external central warehouses (direct shipping). As a result, delivery times may differ from the specified benchmarks. In particular, material shortages, production delays, delivery bottlenecks, force majeure, or other circumstances beyond our control may lead to delivery delays.

Disclaimer:

We accept no liability for delivery delays caused by circumstances that are outside our control. This particularly applies to delays caused by manufacturers, suppliers, transport companies, or other third parties. Liability for any resulting damages, especially for indirect damages, consequential damages, or lost profits, is excluded to the extent permitted by law.

Partial deliveries are permissible as long as they are reasonable for the customer. No additional shipping costs will be incurred unless otherwise agreed.

The exact delivery time of an item can be communicated individually upon request before or after the order.

Please contact us by phone at +49 (0)2551 5030 or by email at shipping@strahltechnik-express.de.

If there are significant delivery delays, we will inform the customer immediately. Mandatory legal rights of the customer remain unaffected.

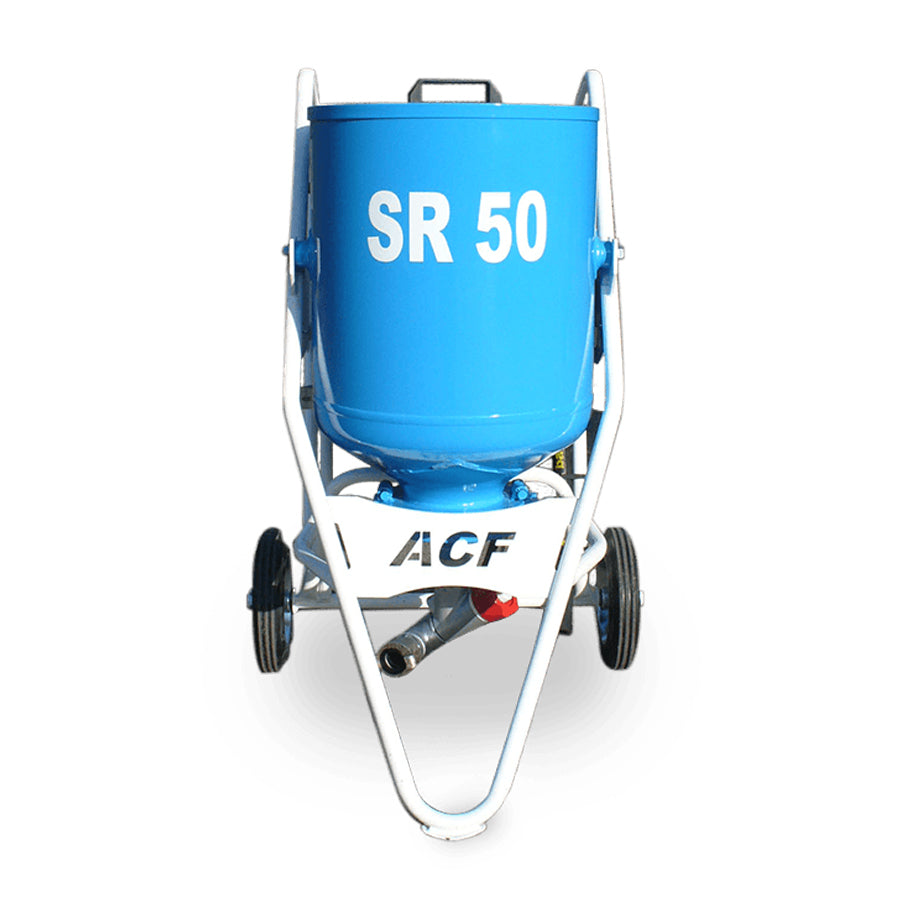

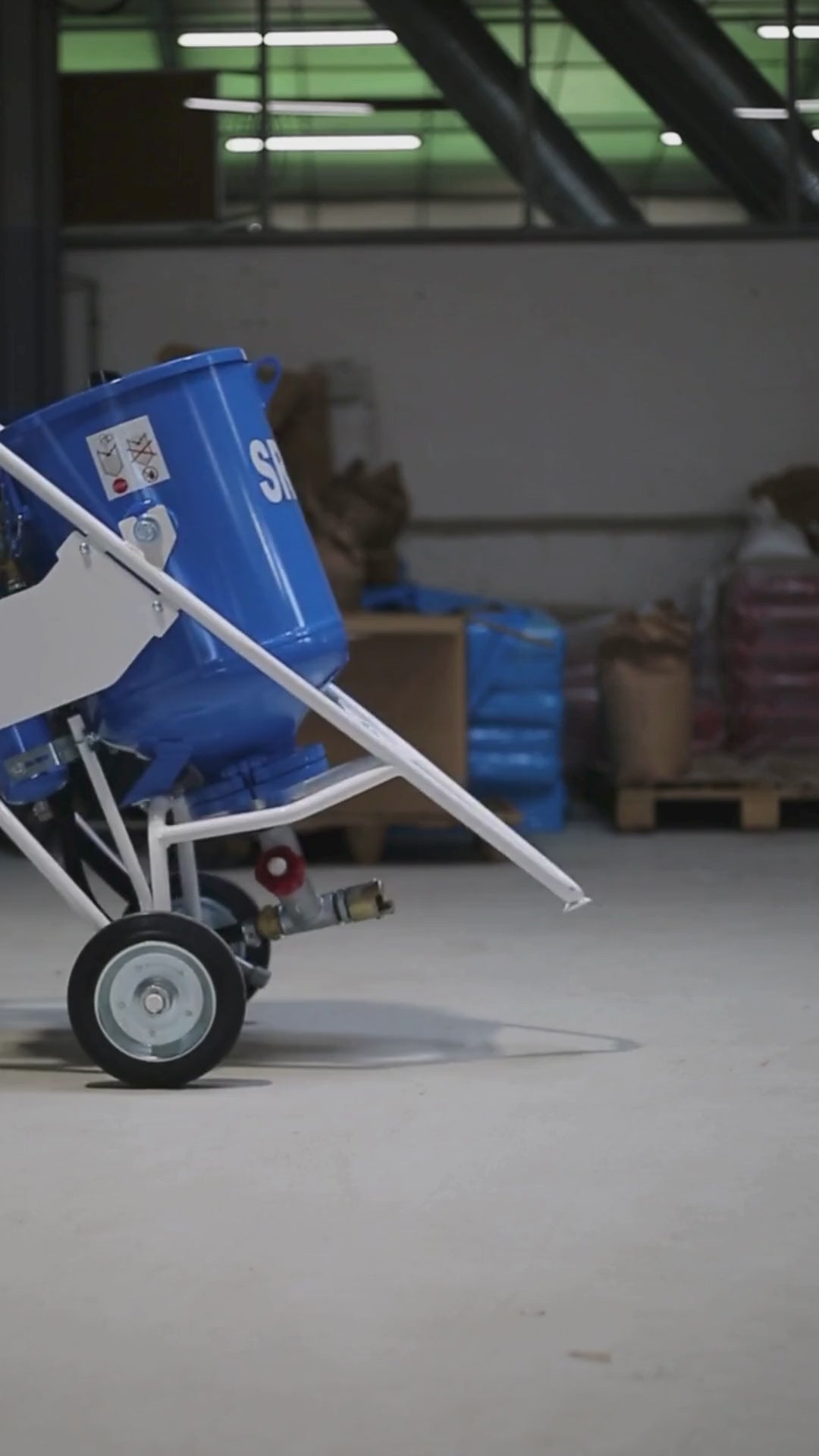

ACF pressure blasting device SR – Robust pressure blasting system in 50 L or 90 L version

The ACF pressure blasting device SR is an extremely robust, professional pressure blasting device with either 50 liters or 90 liters boiler volume. It has been developed for demanding blasting applications in industry, workshops, and construction, and impresses with its extremely stable construction, ease of use, and reliable performance. The device is available as a single variant or as a complete set with blasting hose and protective equipment.

The SR series has been specifically designed to minimize the risks associated with frequent loading and unloading processes, multiple operators working on the machines, and varying operating conditions.

💬 Flexible financing – now new

Fulfill your new professional equipment conveniently through hire purchase or leasing at attractive monthly rates. Calculate your individual rate directly on the product page and adjust the term flexibly to your needs.

🔧 Technical data

Variant	SR 50 L	SR 90 L
Boiler volume	50 liters	90 liters
Dimensions (W × D × H)	667 × 905 × 1030 mm	667 × 905 × 1285 mm
Max. operating pressure	8 bar	8 bar
Operating mode	Pressure blasting process	Pressure blasting process
Suitable abrasive	Dry, flowable abrasives (Depending on nozzle size)	Dry, flowable abrasives (Depending on nozzle size)

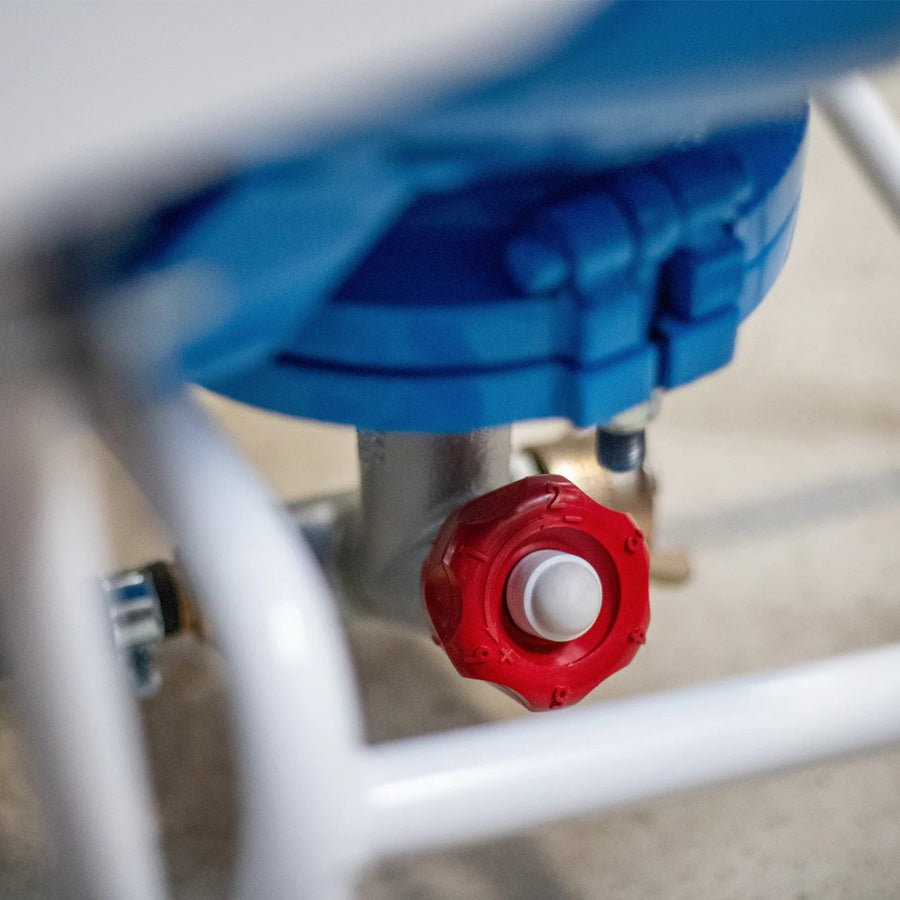

Abrasive dosing valve	Manual dosing valve	Manual dosing valve
Operating temperature	–10 °C to +50 °C	–10 °C to +50 °C
Weight	81 kg	90 kg

📦 Variants & scope of delivery

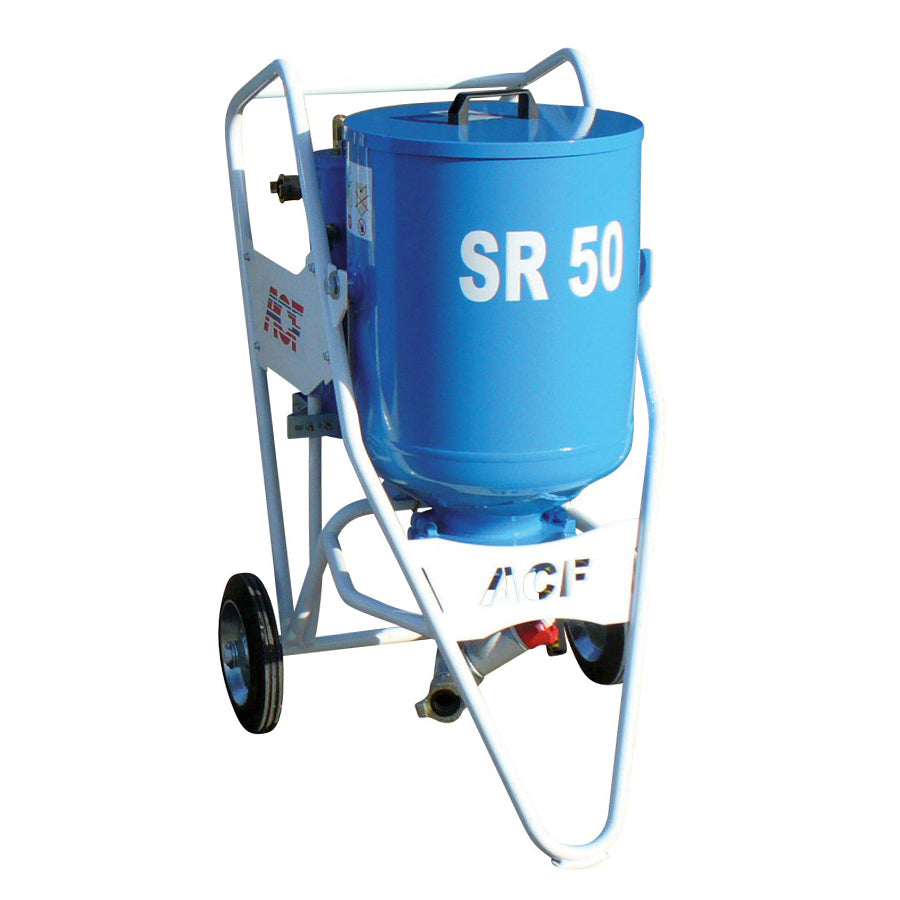

Variant: ACF SR 50 (50 L), Art. No. S 461

ACF pressure blasting device SR 50 with complete piping
Boiler cover and sieve

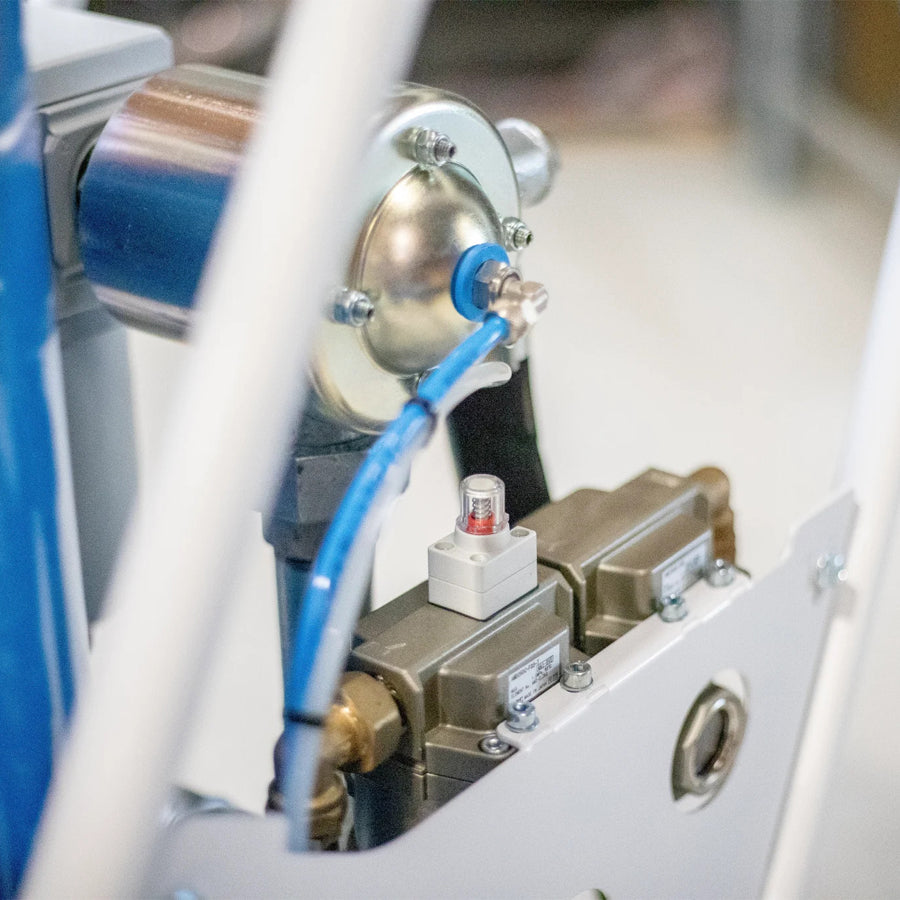

Automatic remote control valve
Manual abrasive dosing valve
Integrated air purifier with compressed air connection

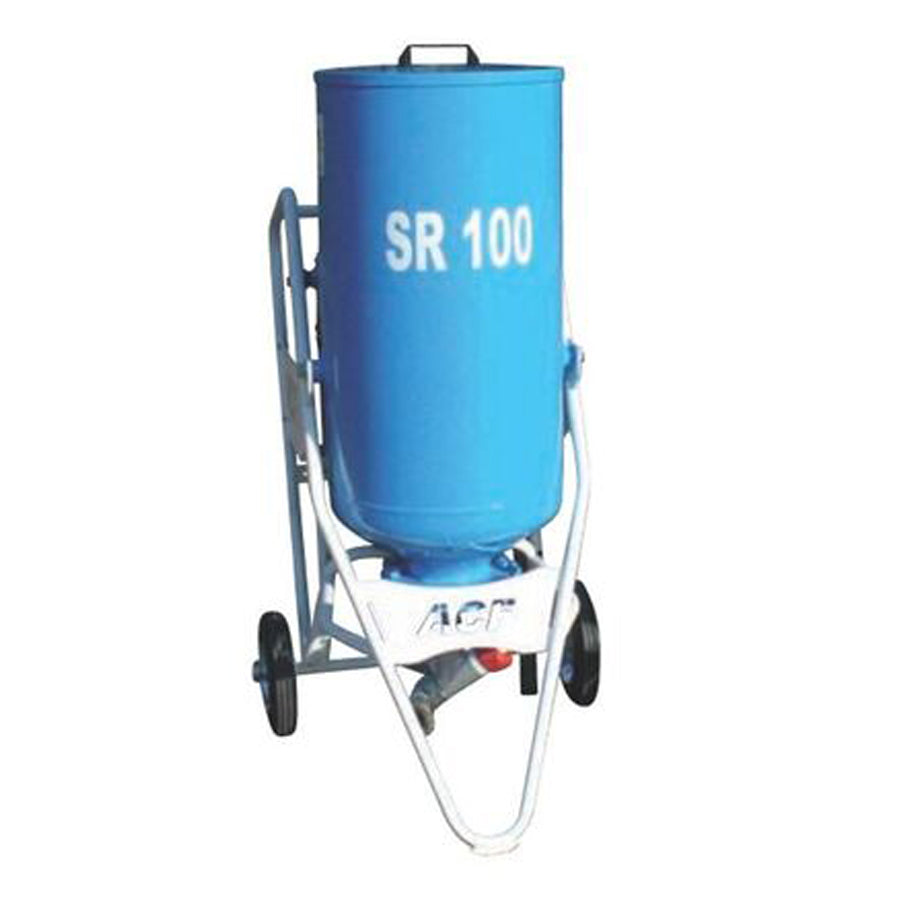

Variant: ACF SR 100 (90 L), Art. No. S 462

ACF pressure blasting device SR 90 with complete piping
Boiler cover and sieve
Automatic remote control valve
Manual abrasive dosing valve
Integrated air purifier with compressed air connection

Variant: ACF SR 50 (50 L) complete set, Art. No. S 551 and S 561

ACF pressure blasting device (50 L), Art. No. S 461
10 or 20 m blast hose Ø 20x33
1 cylindrical blast nozzle Ø 6 mm
1 blast helmet BALI
10 m breathing air hose for blast helmet
Breathing air combination filter F057 incl. cartridge F036
5 disposable films for blast helmet BALI

Variant: ACF SR 100 (90 L) complete set, Art. No. S 552 and S562

ACF pressure blasting device (90 L), Art. No. S 462
10 or 20 m blast hose Ø 20x33
1 cylindrical blast nozzle Ø 6 mm
1 blast helmet BALI
10 m breathing air hose for blast helmet
Breathing air combination filter F057 incl. cartridge F036
5 disposable films for blast helmet BALI

Note:
A air coupling for the compressor connection is not included in the delivery and must be purchased separately.

💡 Compressor recommendation

For reliable operation, depending on nozzle size and hose length, a compressor with an effective air delivery rate of at least 2.0–4.0 m³/min at 7 bar is recommended. Plan for a performance reserve of 30–50 % to avoid pressure drops during continuous operation.

🎯 Typical areas of application

Removal of rust, scale, and old coatings
Surface preparation before coating and painting work
Cleaning of steel structures, pipes, and containers
Concrete restoration and repair work
Mobile applications in workshops and construction sites

🧠 Conclusion

The ACF pressure blasting device SR impresses with its extremely robust construction, clear variant structure, and reliable performance. With 50 L or 90 L tank volume and the choice between a single device and a complete set, it is ideal for professional users looking for a durable and versatile pressure blasting system.

❓ Frequently Asked Questions (FAQ)

What variants are available?
The device is available with 50 L or 90 L tank volume – either as a single device or as a complete set with 10 m or 20 m blast hose and protective equipment.
Is protective equipment included in the delivery?
Yes, the complete sets include safety goggles, gloves, and respiratory protection.
Is an air coupling included?
No, this must be ordered separately.
