Comprag Screw Compressor F-Series, 11 kW Drive Power, 1.3/1.4/1.6 m³/min Flow Rate, 13, 10 or 8 bar max. Operating Pressure
The Comprag F-11 is a compact, oil-injected screw compressor with 11 kW power for reliable continuous operation in workshops and industry. Depending on the version, it achieves a maximum working pressure of 8, 10, or 13 bar and delivers a flow rate of up to 1.60 m³/min at 8 bar, 1.40 m³/min at 10 bar, and 1.30 m³/min at 13 bar. Thanks to its efficient screw block, high-quality drive motor, and t-Log control, the compressor provides an economical, energy-efficient compressed air supply with low noise levels and high air quality.
Tax-free EU delivery after VAT ID number verification at checkout
Free shipping within Germany for orders over €99
Comprag Screw Compressor F-Series, 11 kW Drive Power, 1.3/1.4/1.6 m³/min Flow Rate, 13, 10 or 8 bar max. Operating Pressure - 13 / 1.3 is backordered and will ship as soon as it is back in stock.
Questions & Help
Questions & Help
Do you have questions about one of our products or would you like professional advice on selecting the solution suitable for your application area?
No problem, give us a call! Tel. +49 (0) 2551 5030
Send us an email! shop@strahltechnik-express.de
Use our online chat or the contact form
Leasing & Hire Purchase
Leasing & Hire Purchase
We offer exclusively for entrepreneurs, traders, and self-employed individuals financing options leasing and hire purchase for selected products starting from a net goods value of €1,000. Below you will find the essential differences between both financing forms.
Leasing
In leasing, the product is made available to the lessee for use against payment of regular leasing installments. The accounting is done by the lessor. The leasing installments can usually be claimed as business expenses for tax purposes. These are gross installments, and value-added tax is incurred throughout the entire term. After the agreed basic rental period, acquisition of the product by purchase is generally possible.
Hire Purchase
Hire purchase is economically equivalent to a installment purchase. The product is activated in the balance sheet of the hire purchaser and depreciated according to the official depreciation tables. Upon payment of the last hire purchase installment, ownership of the object transfers to the hire purchaser. The value-added tax must be paid in full with the first hire purchase installment (pass-through item).
Shipping & Delivery
Shipping & Delivery
The shipping of our goods depends on size, weight, and nature, either via parcel service or via freight forwarding. The choice of shipping method is made by us at our discretion.
The delivery times indicated in the online shop are non-binding estimates, unless a binding delivery date has been expressly confirmed in writing. They are based on the information available from our manufacturers, suppliers, and logistics partners at the time of the order.
A large part of the products offered is shipped directly from the manufacturer or from external central warehouses (direct shipping). As a result, delivery times may differ from the specified benchmarks. In particular, material shortages, production delays, delivery bottlenecks, force majeure, or other circumstances beyond our control may lead to delivery delays.
Disclaimer:
We accept no liability for delivery delays caused by circumstances that are outside our control. This particularly applies to delays caused by manufacturers, suppliers, transport companies, or other third parties. Liability for any resulting damages, especially for indirect damages, consequential damages, or lost profits, is excluded to the extent permitted by law.
Partial deliveries are permissible as long as they are reasonable for the customer. No additional shipping costs will be incurred unless otherwise agreed.
The exact delivery time of an item can be communicated individually upon request before or after the order.
Please contact us by phone at +49 (0)2551 5030 or by email at shipping@strahltechnik-express.de.
If there are significant delivery delays, we will inform the customer immediately. Mandatory legal rights of the customer remain unaffected.
Comprag Screw Compressor F-Series, 11 kW Drive Power, 1.3/1.4/1.6 m³/min Flow Rate, 13, 10 or 8 bar max. Operating Pressure - 13 / 1.3 is backordered and will ship as soon as it is back in stock.

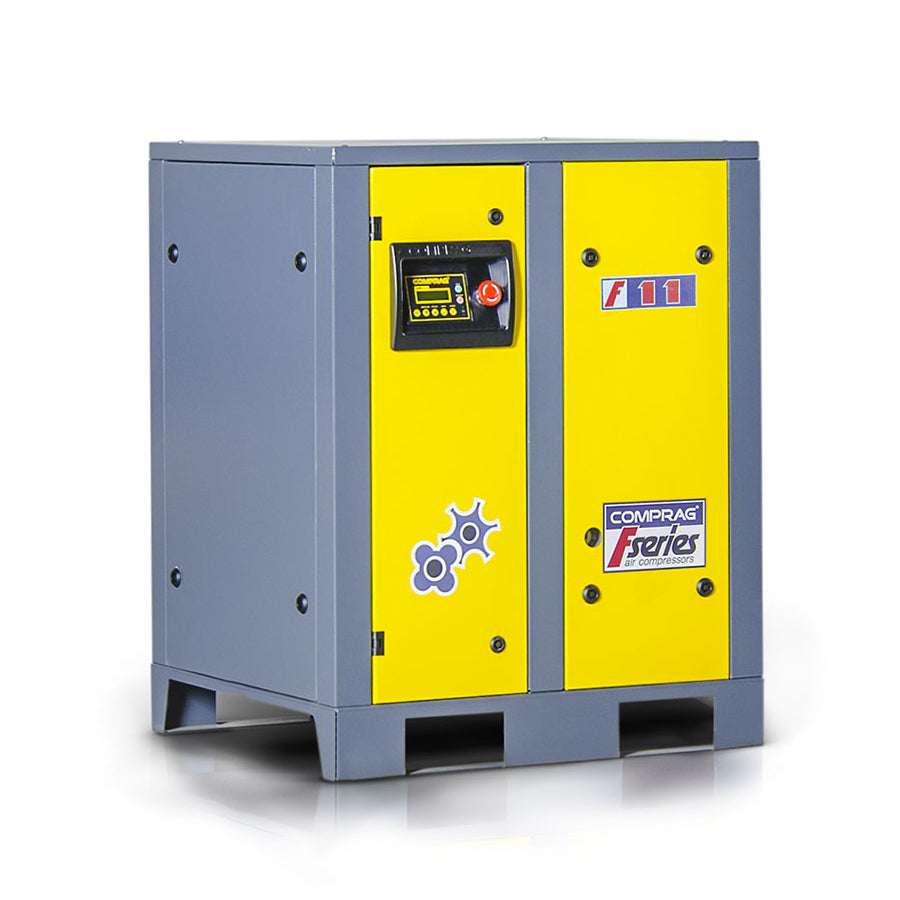

Comprag F-11 screw compressor – 11 kW power, variants for 8 / 10 / 13 bar
The stationary screw compressors of the F series from Comprag provide reliable, efficient, and compact compressed air supply for industrial use. The F-11 has a drive power of 11 kW and is available in variants for 8, 10, and 13 bar. This makes the compressor suitable for medium-sized production facilities, crafts, and industrial applications with high air demand.
F series
The screw compressors of the Comprag F series in base frame design impress with their space-saving construction and flexible expandability. All other components of the compressed air system – such as tanks, dryers, or filters – can be individually added as needed. This makes the F series a reliable, energy-efficient, and service-friendly basic solution for industrial compressed air supply.
⚙️ Quality motors
All compressors in the F series are equipped with highly efficient quality motors from leading manufacturers. They have energy reserves, do not operate in overload conditions, and are additionally protected by thermal motor protection.
🌀 Efficient screw block
The modern rotor design of the screw block ensures maximum energy efficiency. A thin oil film separates the rotor elements without contact, reducing friction and providing an exceptionally long service life.
💧 Clean compressed air
Oil is reliably removed through centrifugal and gravitational separation as well as high-quality air-oil separators. The residual oil content at the outlet is less than 3 mg/m³ – for particularly pure compressed air quality.
✅ Highlights
- Oil-injected screw compressor with 11 kW power
- Available as F1108 (8 bar), F1110 (10 bar), or F1113 (13 bar)
- High energy efficiency through modern screw block
- Microprocessor control t-Log for automated operation
- Low residual oil content in compressed air (≤ 3 mg/m³)
- Compact design, quiet operation, and easy maintenance
📌 Technical data
| Feature | F1108 | F1110 | F1113 |
|---|---|---|---|
| Drive power | 11 kW | ||
| Operating pressure | 8 bar | 10 bar | 13 bar |
| Volume flow | 1.60 m³/min | 1.40 m³/min | 1.30 m³/min |
| Nominal voltage | 3-phase, 380–420 V, 50 Hz | ||
| Noise level | 65 dB(A) | ||
| Connection thread | G ¾″ | ||
| Oil filling quantity | approx. 6 l | ||
📏 Dimensions and weight
| Width (L) | Depth (D) | Height (H) | Weight |
|---|---|---|---|
| 900 mm | 700 mm | 1170 mm | 293 kg |
📦 Scope of delivery
- Screw compressor Comprag F-11 (basic frame version)
- t-Log control with display and emergency stop
- Soundproofed cover
- Complete oil circuit with filtration and cooling
- Operating manual & service booklet
🌍 Advantages at a glance
- Reliable continuous performance at 11 kW drive power
- Higher air performance for medium production plants
- Energy-efficient, robust, and easy to maintain
- Quiet operation at only 65 dB(A)
- Compact design for space-saving installation
🔧 Typical areas of application
- Medium production facilities
- Industrial and manufacturing plants
- Pneumatic tools with high air demand
- Mechanical engineering and metalworking
- Painting and surface treatment (with dryer)
❓ FAQ – Frequently Asked Questions
-
What variants are there?
The F-11 is available as F1108 (8 bar), F1110 (10 bar), and F1113 (13 bar). -
Do I need an air tank?
For stable operation, a tank ≥ 500 l is recommended. -
Is a refrigerant dryer integrated?
No, not with the F-11 (basic frame). Optional FR or FRD versions with tank and refrigerant dryer are available. -
What maintenance intervals apply?
Oil change every 500 hours, filter change depending on operating hours (see manual).
