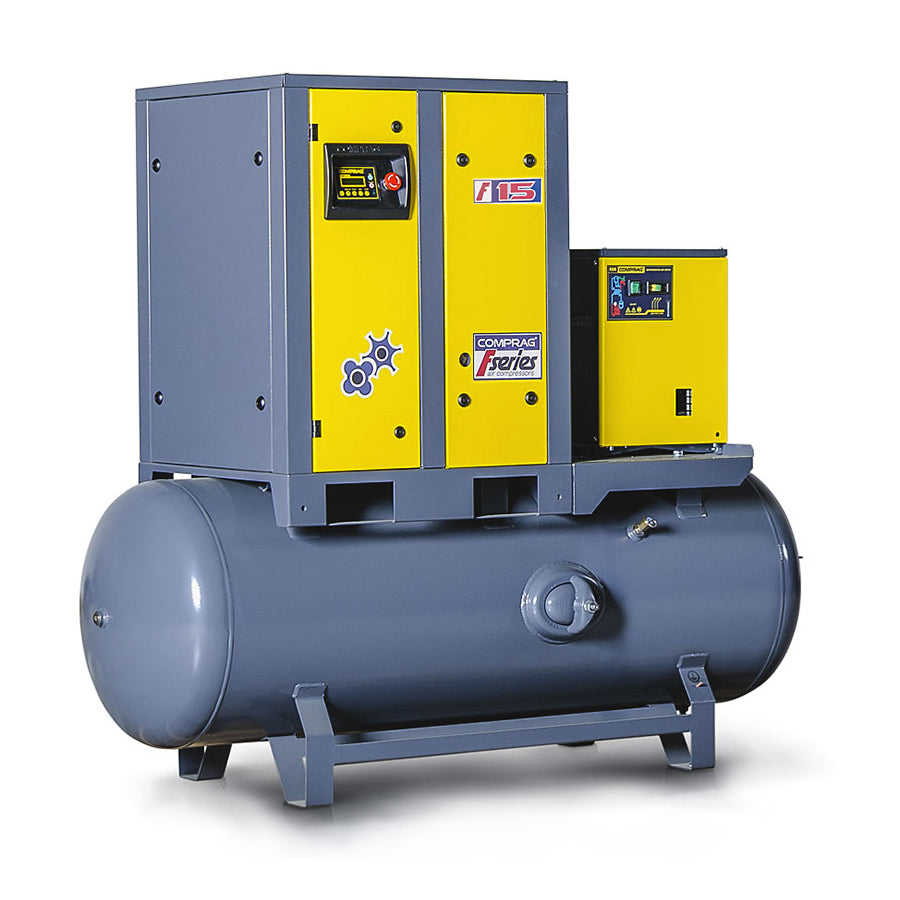

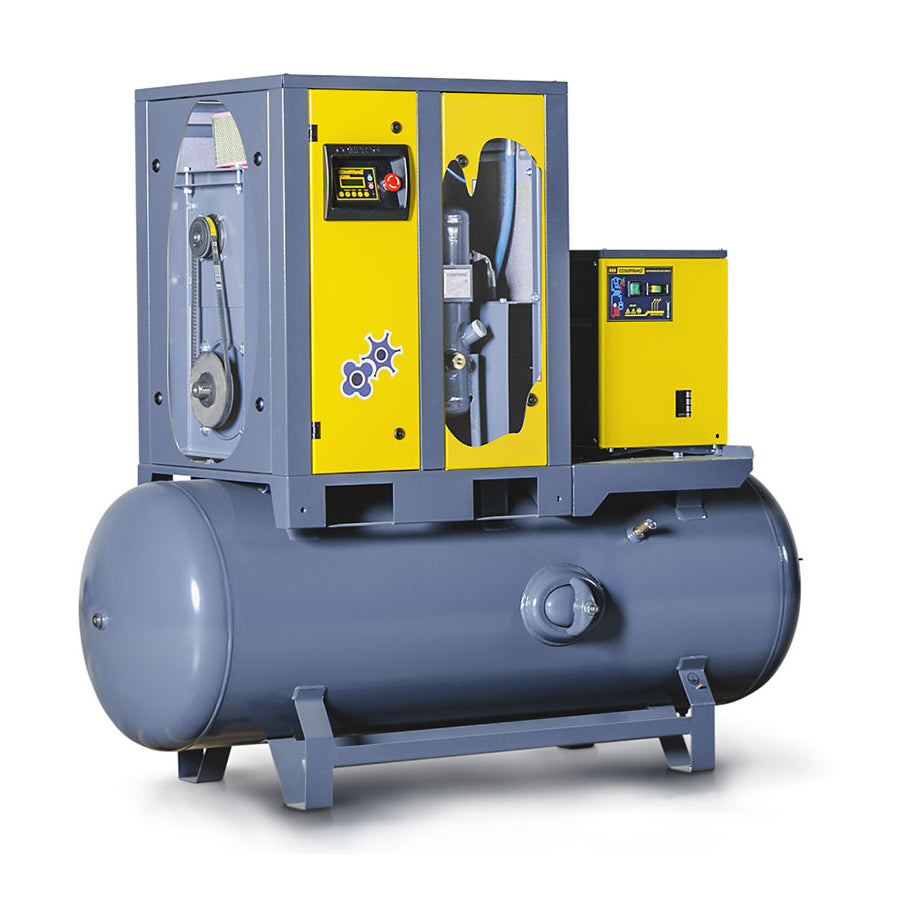

Comprag FRD15.. Screw Compressor – 15 kW with 270 or 500 Liter Tank & integrated Refrigerant Dryer
The FRD15.. series combines a powerful 15 kW screw compressor with an integrated refrigerant dryer. Built on a 270 or 500-liter compressed air tank, this space-saving all-in-one solution provides dry and clean compressed air for workshops, construction sites, and small industrial plants. The built-in refrigerant dryer prevents moisture and condensate in the lines, protects connected devices, and ensures reliable compressed air quality.
FRD Series – Screw Compressors on Tank with Integrated Refrigerant Dryer
The FRD series screw compressors are mounted as a space-saving complete solution on a horizontal compressed air tank and additionally feature an integrated refrigerant dryer. The compressed air tank stabilizes the network pressure, prevents pulsations in the lines, and reduces the compressor's switching cycles. This increases the service life of the screw block, electric motor, and drive system and significantly enhances energy efficiency.
The built-in refrigerant dryer removes most of the moisture from the compressed air. This prevents water formation in the lines, extends the service life of the compressed air lines, and reliably protects connected tools and systems. Since all components are already factory-connected, you save on assembly effort and additional costs.
⚙️ Quality Motors
All compressors in the F series are equipped with highly efficient quality motors from leading manufacturers. They have energy reserves, do not operate in overload conditions, and are additionally protected by thermal motor protection.
🌀 Efficient Screw Block
The modern rotor design of the screw block ensures maximum energy efficiency. A thin film of oil separates the rotor elements without contact, reducing friction and providing an exceptionally long service life.
💧 Clean Compressed Air
Through centrifugal and gravitational separation as well as high-quality air-oil separators, the oil is reliably removed. The residual oil content at the outlet is less than 3 mg/m³ – for particularly pure compressed air quality.
✅ Highlights
- Screw compressor with 15 kW drive power
- Four variants: 8 or 10 bar, each with 270 or 500 liter tank
- Integrated refrigerant dryer for dry compressed air
- t-Log control with comprehensive monitoring
- Compact and service-friendly design
📌 Technical data
| Feature | FRD1508-270 | FRD1508-500 | FRD1510-270 | FRD1510-500 |
|---|---|---|---|---|
| Drive power | 15 kW | |||
| Operating pressure | 8 bar | 10 bar | ||
| Flow rate | 2.30 m³/min | 1.90 m³/min | ||
| Tank size | 270 l | 500 l | 270 l | 500 l |
| Oil capacity | 8 l | |||
| Rated voltage | 3-phase, 380–420 V, 50 Hz | |||
| Noise level | 69 dB(A) | |||
| Connection | G ¾″ | |||
📏 Dimensions and weight
| Variant | Width (L) | Depth (D) | Height (H) | Weight |
|---|---|---|---|---|
| FRD15..-270 | 1470 mm | 700 mm | 1650 mm | 460 kg |
| FRD15..-500 | 1900 mm | 800 mm | 1650 mm | 502 kg |
📦 Scope of delivery
- Comprag FRD15.. screw compressor (15 kW)
- Mounted on 270 or 500-liter compressed air tank
- Integrated refrigerant dryer
- t-Log control
- Sound-insulated cover
- Operating manual & service booklet
🌍 Overview of advantages
- Compact all-in-one solution with refrigerant dryer
- Four variants: 8 or 10 bar with 270 l or 500 l tank
- Dry compressed air for maximum operational safety
- Ready for installation, space-saving, and service-friendly
- Ideal for small to medium-sized businesses with higher compressed air needs
🔧 Typical application area
The FRD15.. is the ideal solution for small industrial plants, workshops, and construction sites with a consistently higher demand for compressed air. Typical applications include painting lines, sandblasting booths, machining centers, and pneumatic manufacturing systems.
❓ FAQ – Frequently Asked Questions
-
What variants are available?
FRD1508-270, FRD1508-500, FRD1510-270, and FRD1510-500. -
What is the oil capacity?
All variants have an oil capacity of 6 liters. -
What advantages does the integrated refrigerant dryer offer?
It reliably removes moisture from the compressed air, protects lines, and extends the lifespan of connected devices. -
Who is the FRD15.. suitable for?
For workshops, construction sites, and small industrial businesses with a continuous demand for dry compressed air.
