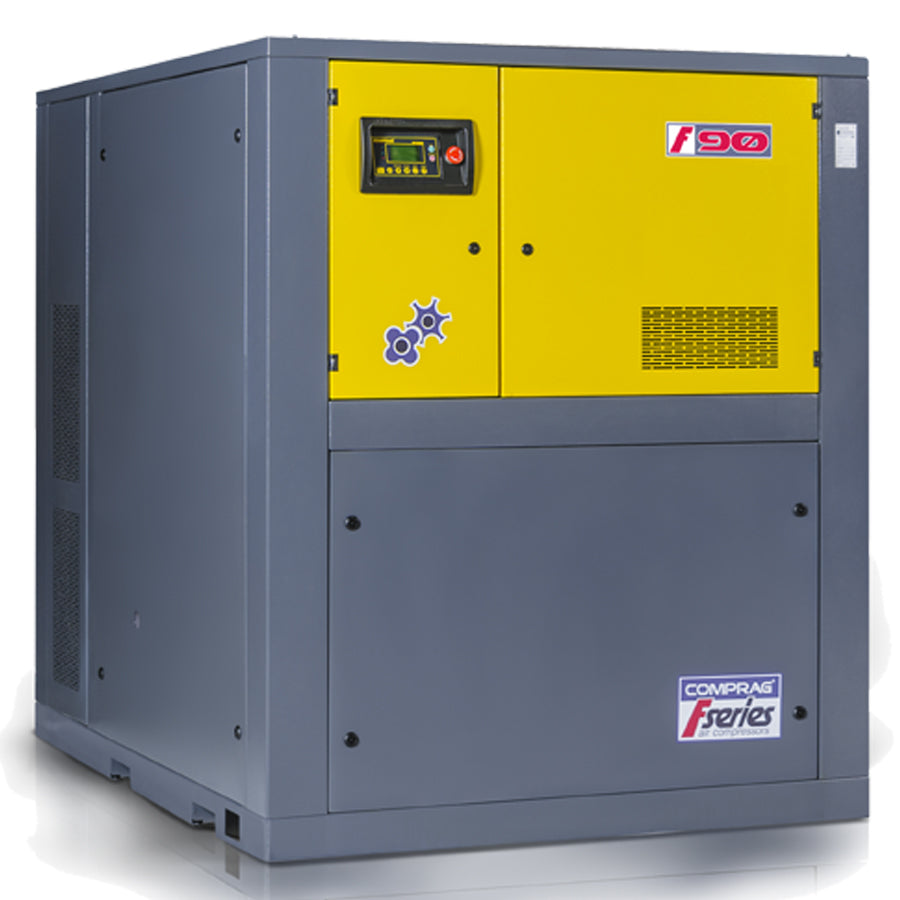

Comprag F-90 screw compressor – 90 kW power, variants for 8 / 10 / 13 bar
The screw compressors of the Comprag F series are designed for the highest demands in industry and production. The F-90 with 90 kW drive power delivers enormous air performance at operating pressures of 8, 10, or 13 bar. With its robust construction, energy-efficient compression stage, and modern control, the F-90 is ideally suited for large production facilities and businesses with consistently very high compressed air demand.
F series
The screw compressors of the Comprag F series in base frame design impress with their space-saving construction and flexible expandability. All other components of the compressed air system – such as tanks, dryers, or filters – can be individually added as needed. Thus, the F series offers a reliable, energy-efficient, and service-friendly basic solution for industrial compressed air supply.
⚙️ Quality motors
All compressors in the F series are equipped with highly efficient quality motors from leading manufacturers. They have energy reserves, do not operate in overload conditions, and are additionally protected by thermal motor protection.
🌀 Efficient screw block
The modern rotor design of the screw block ensures maximum energy efficiency. A thin oil film separates the rotor elements without contact, reducing friction and providing an exceptionally long service life.
💧 Clean compressed air
Through centrifugal and gravitational separation as well as high-quality air-oil separators, the oil is reliably removed. The residual oil content at the outlet is less than 3 mg/m³ – for particularly pure compressed air quality.
✅ Highlights
- Oil-injected screw compressor with 90 kW power
- Available as F9008 (8 bar), F9010 (10 bar) or F9013 (13 bar)
- Very high air delivery rate for industrial applications
- Microprocessor control i-Log for safe and automated operation
- Low residual oil content in the compressed air (≤ 3 mg/m³)
- Compact, soundproof design – service-friendly and durable
📌 Technical data
| Feature | F9008 | F9010 | F9013 |
|---|---|---|---|
| Drive power | 90 kW | ||
| Operating pressure | 8 bar | 10 bar | 13 bar |
| Volume flow | 14.70 m³/min | 12.80 m³/min | 11.10 m³/min |
| Nominal voltage | 3-phase, 380–420 V, 50 Hz | ||
| Noise level | 75 dB(A) | ||
| Connection thread | DN 80 | ||
| Oil filling quantity | approx. 45 l | ||
📏 Dimensions and weight
| Width (L) | Depth (D) | Height (H) | Weight |
|---|---|---|---|
| 1490 mm | 1790 mm | 1790 mm | 1690 kg |
📦 Scope of delivery
- Screw compressor Comprag F-90 (basic frame version)
- i-Log control with display and emergency stop
- Soundproofed hood
- Complete oil circuit with filtration and cooling
- Operating manual & service booklet
🌍 Advantages at a glance
- Very high air output for industrial continuous applications
- Energy-efficient, robust screw block for long service life
- Quiet operation at only 75 dB(A)
- Compact design for space-saving integration
- Service-friendly design with easily accessible maintenance points
🔧 Typical areas of application
- Large companies and industrial production facilities
- Compressed air supply for multiple machines and workstations
- Mechanical engineering, metal processing, automotive industry
- Manufacturing lines with high continuous air demand
- Coating, coating, and surface treatment (with refrigerant dryer)
❓ FAQ – Frequently Asked Questions
-
What variants are there?
The F-90 is available as F9008 (8 bar), F9010 (10 bar), and F9013 (13 bar). -
Do I need an air tank?
For stable operation, a tank ≥ 5000 l is recommended. -
Is a refrigerant dryer integrated?
No, not for the F-90 (basic frame). Optional FR or FRD versions with tank and integrated refrigerant dryer are available. -
What maintenance intervals apply?
Oil change every 500 h, filter change after operating hours (see manual).
