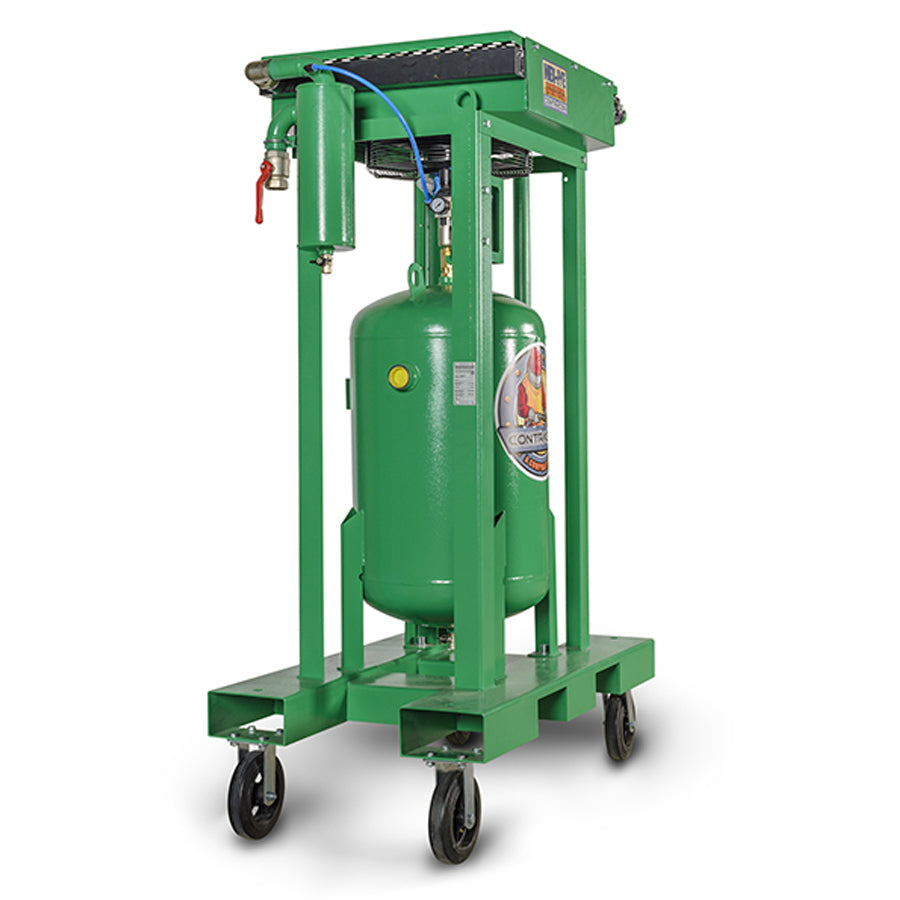

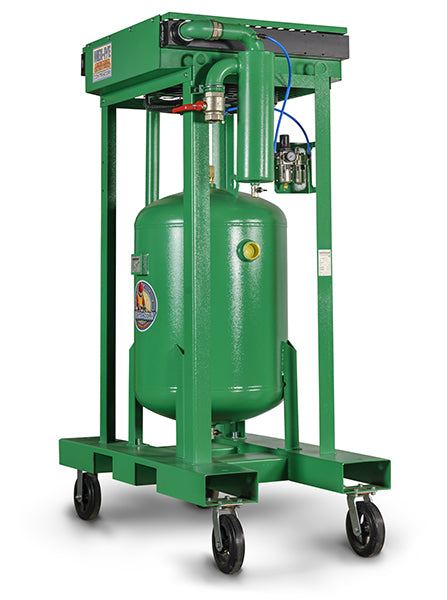

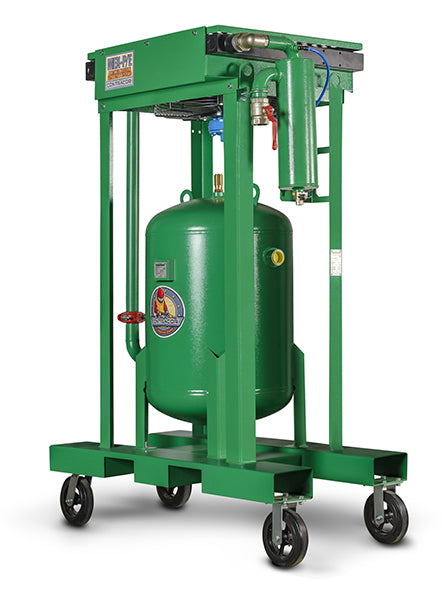

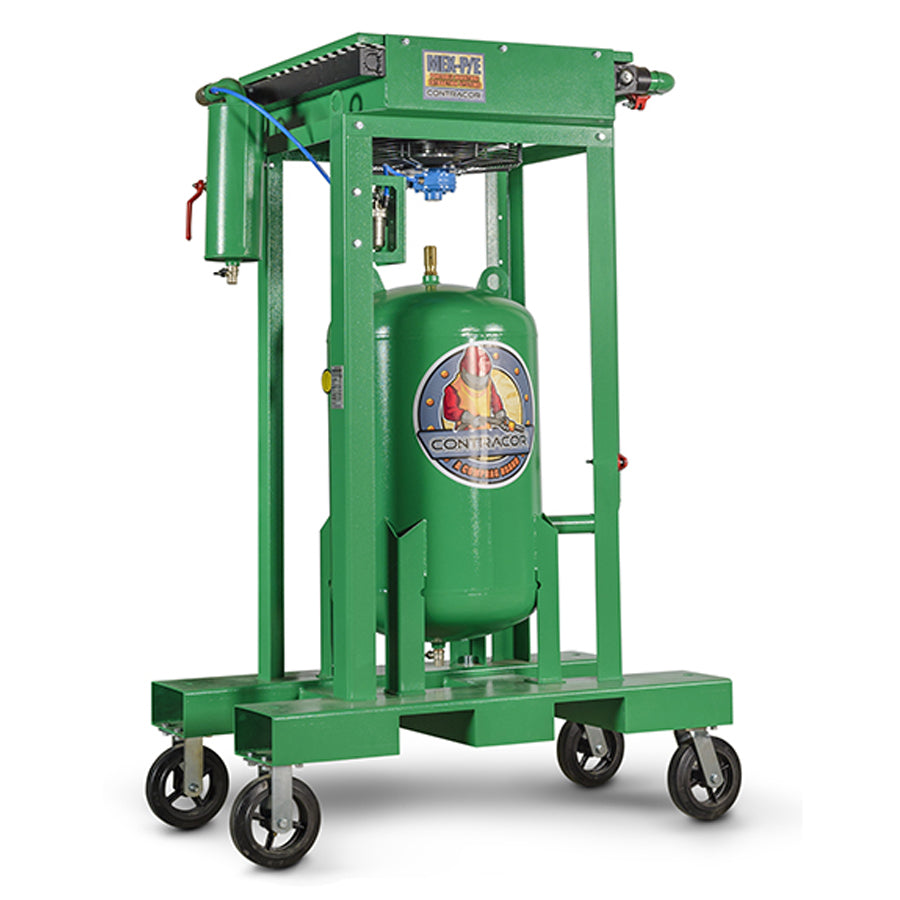

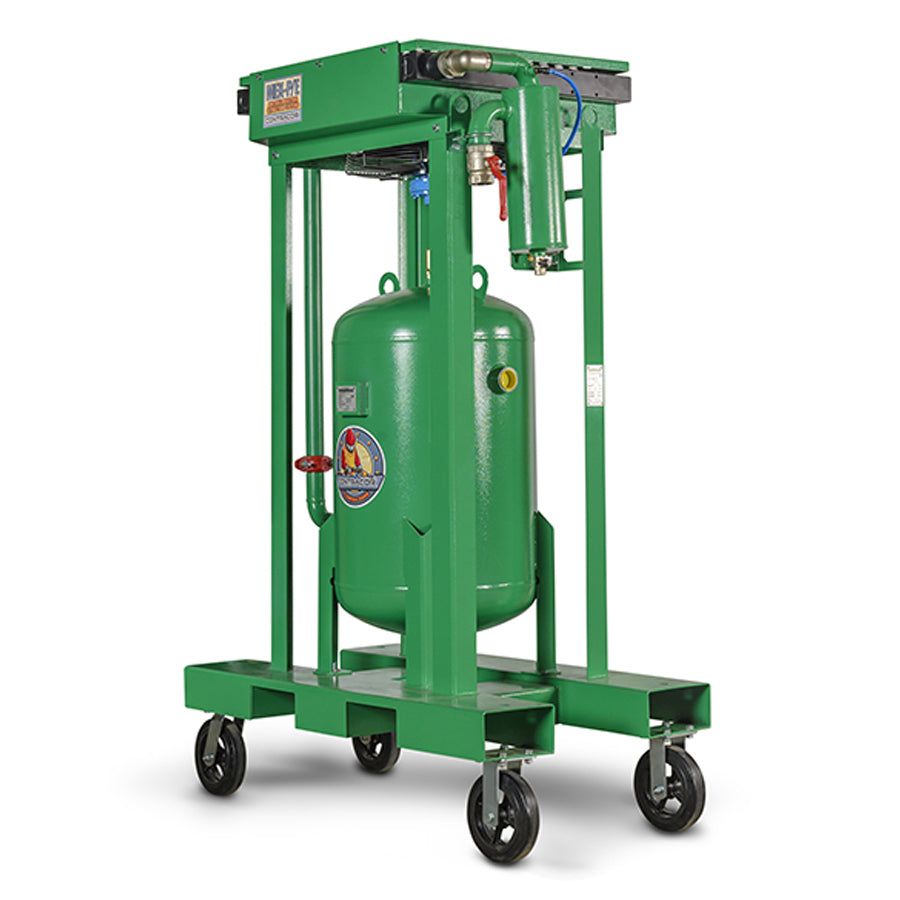

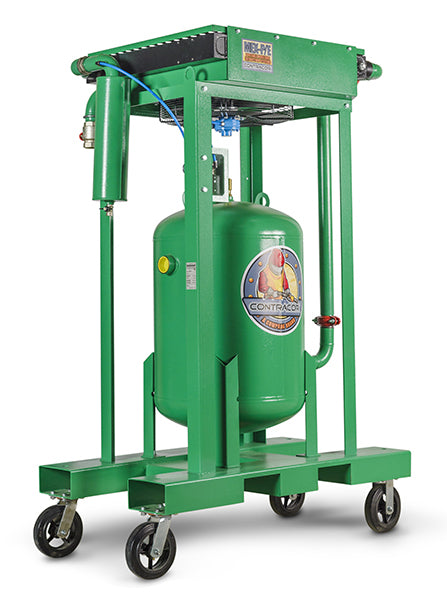

Contracor compressed air dehumidification system MEX-P, pneumatic drive, max. flow rate 20 or 30 m³/min
The Contracor MEX-P pneumatic condensate removal system reliably cools, cleans, and dries compressed air during blasting operations. It effectively reduces condensate, oil, and dirt particles, thereby improving blast quality and extending the lifespan of blasting equipment. The pneumatic drive allows for operation without electrical energy and is ideal for harsh industrial, construction, and blasting environments. Available for volume flows of 20 and 30 m³/min at a maximum operating pressure of 12 bar, the MEX-P, depending on the configuration, allows for the simultaneous supply of multiple consumers.
Tax-free EU delivery after VAT ID number verification at checkout
Free shipping within Germany for orders over €99
Contracor compressed air dehumidification system MEX-P, pneumatic drive, max. flow rate 20 or 30 m³/min - 20 is backordered and will ship as soon as it is back in stock.
Questions & Help
Questions & Help
Do you have questions about one of our products or would you like professional advice on selecting the solution suitable for your application area?
No problem, give us a call! Tel. +49 (0) 2551 5030
Send us an email! shop@strahltechnik-express.de
Use our online chat or the contact form
Leasing & Hire Purchase
Leasing & Hire Purchase
We offer exclusively for entrepreneurs, traders, and self-employed individuals financing options leasing and hire purchase for selected products starting from a net goods value of €1,000. Below you will find the essential differences between both financing forms.
Leasing
In leasing, the product is made available to the lessee for use against payment of regular leasing installments. The accounting is done by the lessor. The leasing installments can usually be claimed as business expenses for tax purposes. These are gross installments, and value-added tax is incurred throughout the entire term. After the agreed basic rental period, acquisition of the product by purchase is generally possible.
Hire Purchase
Hire purchase is economically equivalent to a installment purchase. The product is activated in the balance sheet of the hire purchaser and depreciated according to the official depreciation tables. Upon payment of the last hire purchase installment, ownership of the object transfers to the hire purchaser. The value-added tax must be paid in full with the first hire purchase installment (pass-through item).
Shipping & Delivery
Shipping & Delivery
The shipping of our goods depends on size, weight, and nature, either via parcel service or via freight forwarding. The choice of shipping method is made by us at our discretion.
The delivery times indicated in the online shop are non-binding estimates, unless a binding delivery date has been expressly confirmed in writing. They are based on the information available from our manufacturers, suppliers, and logistics partners at the time of the order.
A large part of the products offered is shipped directly from the manufacturer or from external central warehouses (direct shipping). As a result, delivery times may differ from the specified benchmarks. In particular, material shortages, production delays, delivery bottlenecks, force majeure, or other circumstances beyond our control may lead to delivery delays.
Disclaimer:
We accept no liability for delivery delays caused by circumstances that are outside our control. This particularly applies to delays caused by manufacturers, suppliers, transport companies, or other third parties. Liability for any resulting damages, especially for indirect damages, consequential damages, or lost profits, is excluded to the extent permitted by law.
Partial deliveries are permissible as long as they are reasonable for the customer. No additional shipping costs will be incurred unless otherwise agreed.
The exact delivery time of an item can be communicated individually upon request before or after the order.
Please contact us by phone at +49 (0)2551 5030 or by email at shipping@strahltechnik-express.de.
If there are significant delivery delays, we will inform the customer immediately. Mandatory legal rights of the customer remain unaffected.
Contracor MEX-P – Pneumatic condensate removal system for blasting systems
The Contracor MEX-P condensate removal system has been specifically designed to reliably cool, clean, and dry compressed air during blasting. By efficiently separating condensate and dirt particles, it increases the lifespan of your blasting systems and sustainably improves work quality. The MEX-P series operates with a pneumatic drive and is designed for continuous use in industry, construction, and workshops.
✅ Highlights
- Efficient cooling, cleaning, and drying of compressed air
- Pneumatically operated fan with network switch
- Reduction of condensate, oil, and dirt in the compressed air
- Robust design – ideal for continuous operation
- Simultaneous supply of up to three consumers
💡 Areas of application
- Optimization of compressed air quality for sandblasting equipment
- Extension of the service life of blasting and compressed air systems
- Use in industry, workshops, construction, and blasting halls
📌 Technical Data
| Feature | MEX-P-1 | MEX-P-2 |
|---|---|---|
| Max. operating pressure | 12 bar | 12 bar |
| Performance (m³/min) | 20 | 30 |
| Coalescer volume (l) | 150 | 250 |
| Pressure of the air motor min./max. (bar) | 2 / 6 | 2 / 6 |
| Compressed air requirement at min./max. pressure (m³/min) | 0,6 / 1,4 | 0,6 / 1,4 |
| Inlet | 1 1/2" | 2" |
| Outlet | 1 × 3/4", 1 × 1", 1 × 1 1/4" | 1 × 3/4", 1 × 1 1/4", 1 × 1 1/2" |
📏 Dimensions and Weight
| Model | Height H (mm) | Width D (mm) | Length L (mm) | Weight (kg) |
|---|---|---|---|---|
| MEX-P-1 | 1709 | 701 | 1160 | 220 |
| MEX-P-2 | 1872 | 816 | 1300 | 251 |
🌍 Advantages at a glance
- Clean, dry compressed air for perfect blasting results
- Longer service life of blast nozzles, hoses, and systems
- Robust industrial quality for continuous operation
- Easy integration into existing blasting systems
❓ FAQ – Frequently Asked Questions
-
What is the MEX-P condensate removal system used for?
It cools, cleans, and dries compressed air and reliably removes condensate and dirt – ideal for blasting work. -
Which models are available?
Currently, there are only MEX-P-1 (20 m³/min) and MEX-P-2 (30 m³/min). The previous model MEX-P-3 is no longer offered. -
How many consumers can be connected?
Up to three compressed air consumers can be supplied simultaneously. -
What is the maximum performance?
MEX-P-1: 20 m³/min, MEX-P-2: 30 m³/min. -
How complex is the maintenance?
Maintenance is simple: regular draining of condensate and cleaning of the heat exchanger is usually sufficient.
