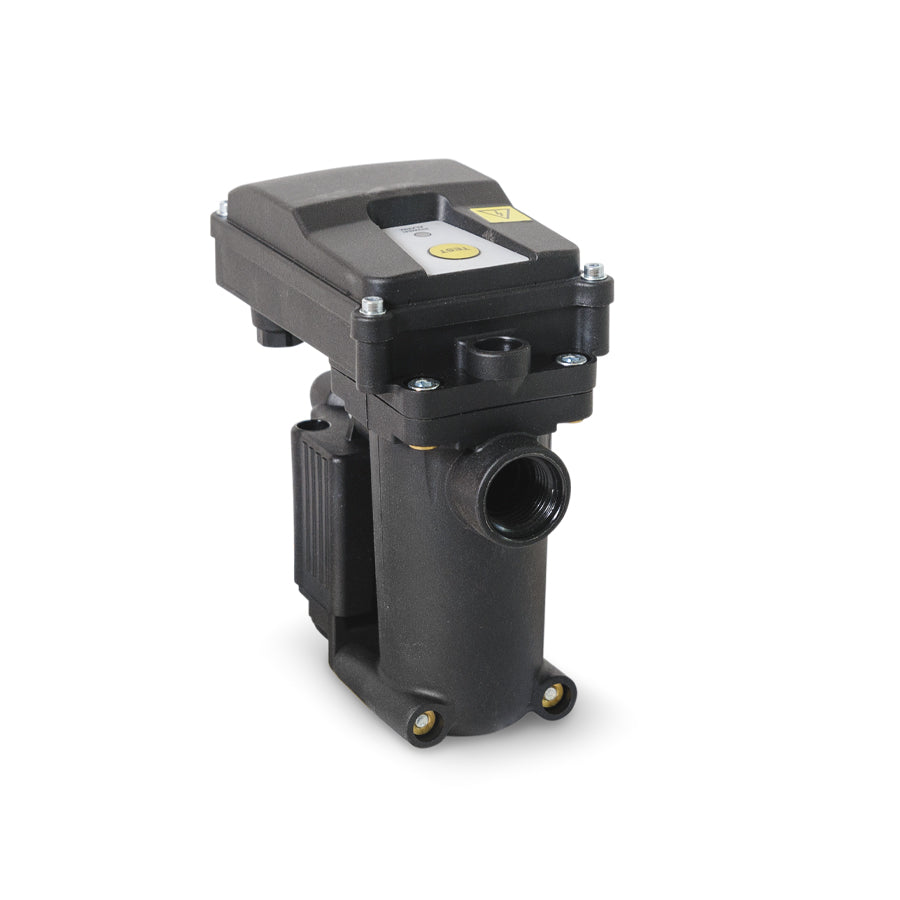

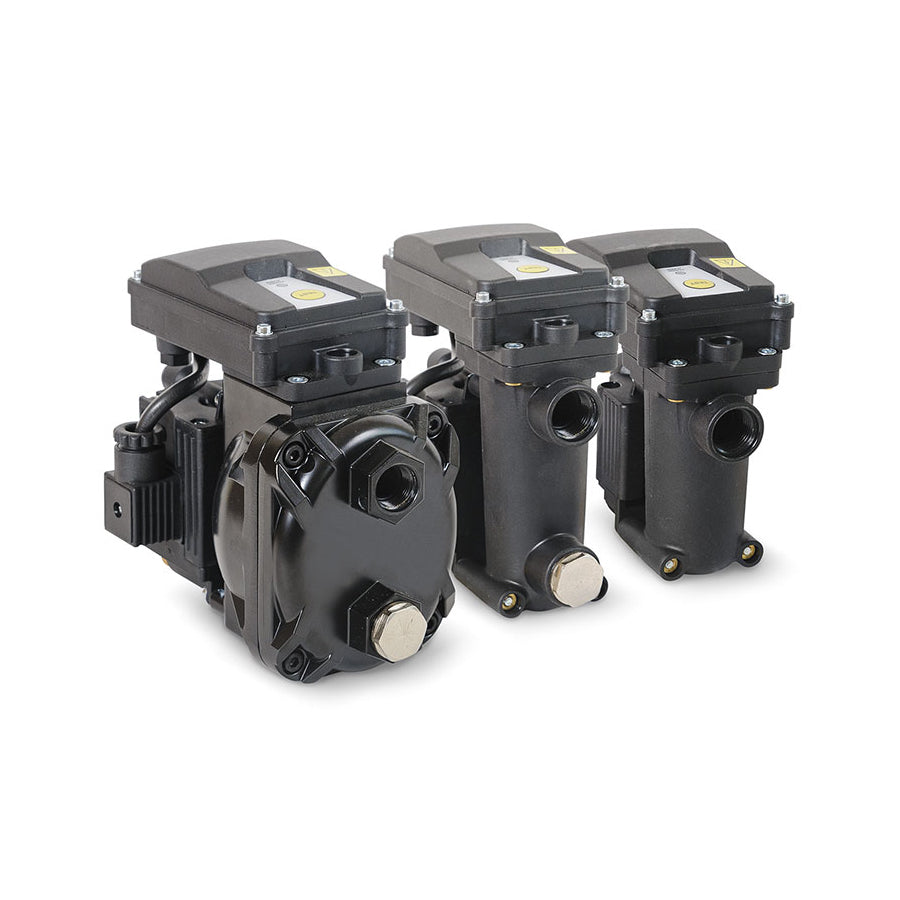

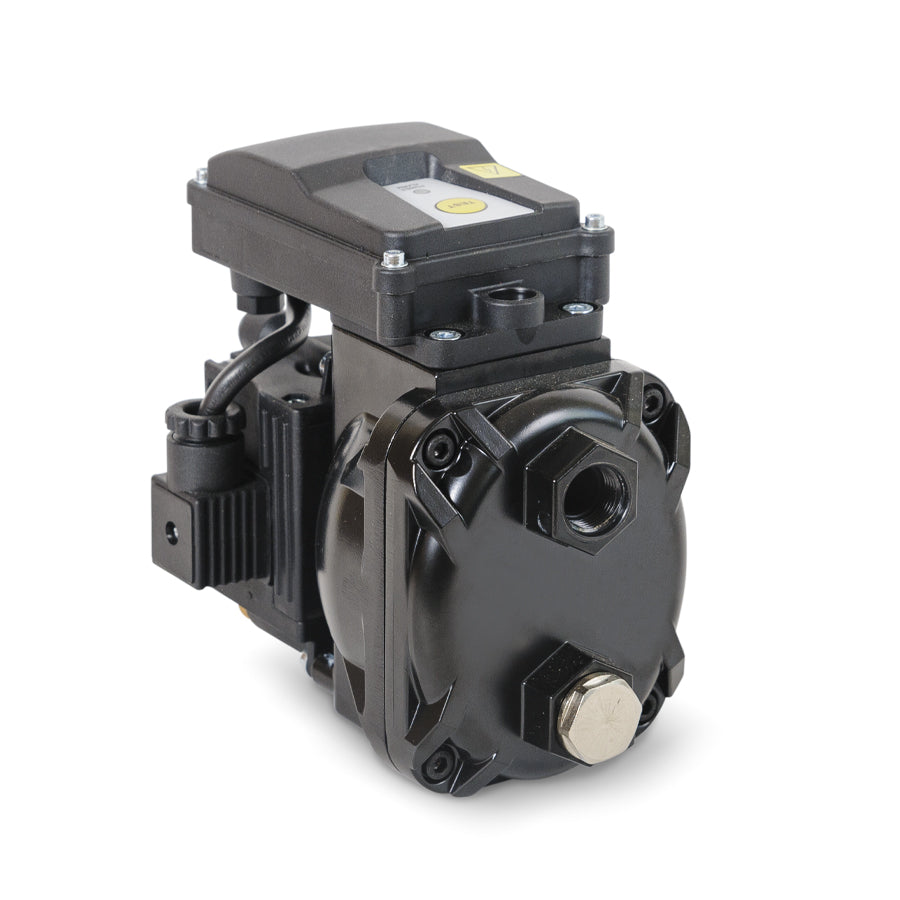

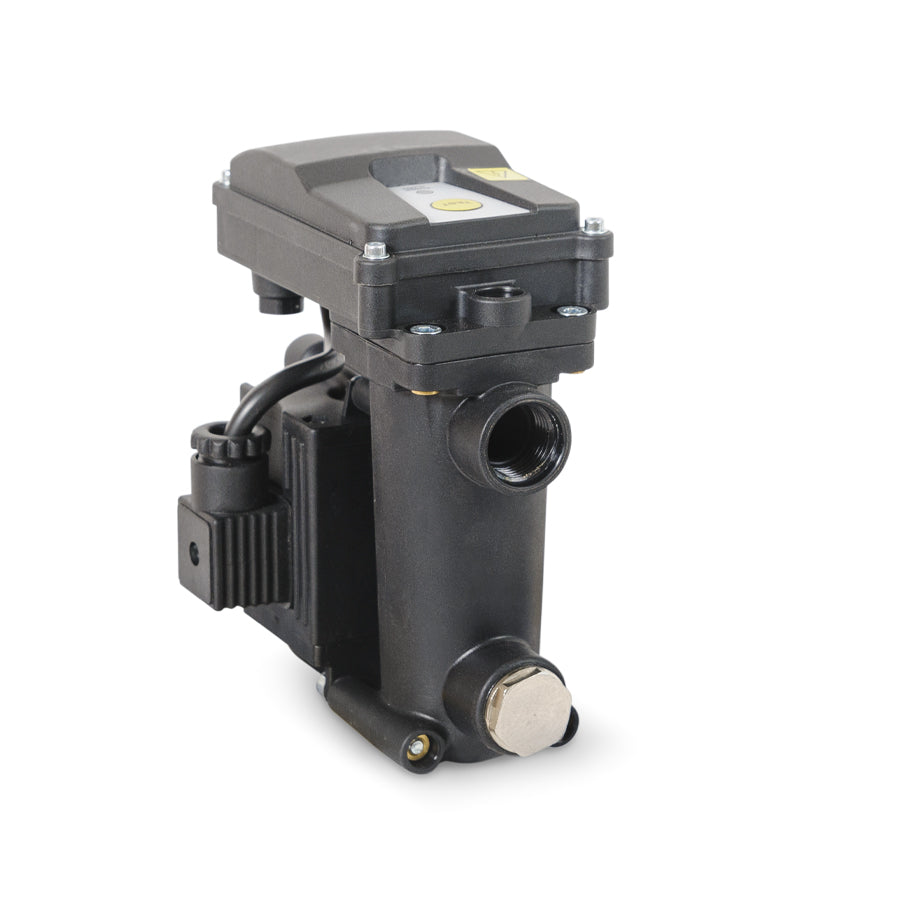

Comprag Condensate Drain ED, 1/2", 16 bar, 10 to 30 m³/min
The electronic condensate drain valves of the Comprag ED series enable fully automatic, loss-free discharge of condensate from compressed air systems. A capacitive sensor controls the solenoid valve as needed and reliably prevents energy losses due to compressed air escape. Thanks to their compact design, integrated dirt trap, TEST button, and 1/2″ screw connection, the ED valves are ideal for compressors, dryers, filters, and compressed air tanks. Available for flow rates up to 30 m³/min at up to 16 bar operating pressure.
Tax-free EU delivery after VAT ID number verification at checkout
Free shipping within Germany for orders over €99
Comprag Condensate Drain ED, 1/2", 16 bar, 10 to 30 m³/min - 10 is backordered and will ship as soon as it is back in stock.
Questions & Help
Questions & Help
Do you have questions about one of our products or would you like professional advice on selecting the solution suitable for your application area?
No problem, give us a call! Tel. +49 (0) 2551 5030
Send us an email! shop@strahltechnik-express.de
Use our online chat or the contact form
Leasing & Hire Purchase
Leasing & Hire Purchase
We offer exclusively for entrepreneurs, traders, and self-employed individuals financing options leasing and hire purchase for selected products starting from a net goods value of €1,000. Below you will find the essential differences between both financing forms.
Leasing
In leasing, the product is made available to the lessee for use against payment of regular leasing installments. The accounting is done by the lessor. The leasing installments can usually be claimed as business expenses for tax purposes. These are gross installments, and value-added tax is incurred throughout the entire term. After the agreed basic rental period, acquisition of the product by purchase is generally possible.
Hire Purchase
Hire purchase is economically equivalent to a installment purchase. The product is activated in the balance sheet of the hire purchaser and depreciated according to the official depreciation tables. Upon payment of the last hire purchase installment, ownership of the object transfers to the hire purchaser. The value-added tax must be paid in full with the first hire purchase installment (pass-through item).
Shipping & Delivery
Shipping & Delivery
The shipping of our goods depends on size, weight, and nature, either via parcel service or via freight forwarding. The choice of shipping method is made by us at our discretion.
The delivery times indicated in the online shop are non-binding estimates, unless a binding delivery date has been expressly confirmed in writing. They are based on the information available from our manufacturers, suppliers, and logistics partners at the time of the order.
A large part of the products offered is shipped directly from the manufacturer or from external central warehouses (direct shipping). As a result, delivery times may differ from the specified benchmarks. In particular, material shortages, production delays, delivery bottlenecks, force majeure, or other circumstances beyond our control may lead to delivery delays.
Disclaimer:
We accept no liability for delivery delays caused by circumstances that are outside our control. This particularly applies to delays caused by manufacturers, suppliers, transport companies, or other third parties. Liability for any resulting damages, especially for indirect damages, consequential damages, or lost profits, is excluded to the extent permitted by law.
Partial deliveries are permissible as long as they are reasonable for the customer. No additional shipping costs will be incurred unless otherwise agreed.
The exact delivery time of an item can be communicated individually upon request before or after the order.
Please contact us by phone at +49 (0)2551 5030 or by email at shipping@strahltechnik-express.de.
If there are significant delivery delays, we will inform the customer immediately. Mandatory legal rights of the customer remain unaffected.
Comprag ED Series – Electronic Condensate Drain Valve Without Air Loss
The electronic condensate drain valves of the ED Series from Comprag are the most modern solution for reliable, loss-free drainage of condensate in compressed air systems. Using a capacitive sensor, the system accurately detects the fill level and automatically controls the opening of the solenoid valve. This efficiently removes condensate without pressure loss – ideal for industry, workshops, or sensitive applications.
✅ Highlights
- Electronic level control with capacitive sensor
- 100% loss-free condensate drainage
- With TEST button for functional testing and manual drainage
- Integrated dirt trap for reliable operation
- Compact design – can be mounted horizontally or vertically
- Maintenance-friendly thanks to modular valve block
🔧 Technical Data (model-dependent)
- Screw connection: G 1/2"
- Max. operating pressure: 16 bar
- Nominal voltage: 1~ / 230 V / 50 Hz
-
Max. flow rate:
- ED-10: up to 10.0 m³/min
- ED-20: up to 20.0 m³/min
- ED-30: up to 30.0 m³/min
-
Dimensions (L × W × H) & Weight:
- ED-10: 133 × 76 × 147 mm – 0.5 kg
- ED-20: 140 × 85 × 166 mm – 0.7 kg
- ED-30: 170 × 99 × 162 mm – 1.2 kg
📌 Application Notes
- For compressors, dryers, filters, or compressed air tanks
- Optimal for highly fluctuating or irregular condensate formation
- Prevents energy losses due to compressed air leakage
❓ FAQ – Frequently Asked Questions about the ED Series
-
How does the ED condensate drain valve work?
A capacitive sensor measures the fill level. The solenoid valve opens automatically only when needed – completely without air loss. -
Can I test the valve myself?
Yes, each model has a TEST button for manual drainage or functional testing. -
Is filtering of the condensate necessary?
An integrated dirt trap protects the valve. For very oily condensate, an additional oil-water separator is recommended. -
What models are available?
The series includes ED-10, ED-20, and ED-30 – tailored to the flow rate of your compressed air system.
