ExtraBlast "Abrasive 2" sandblasting hose, Q2 quality, ID 13, 19, 25, 32 mm, 5, 20, 40m rolls - 13x27 / 5 is backordered and will ship as soon as it is back in stock.

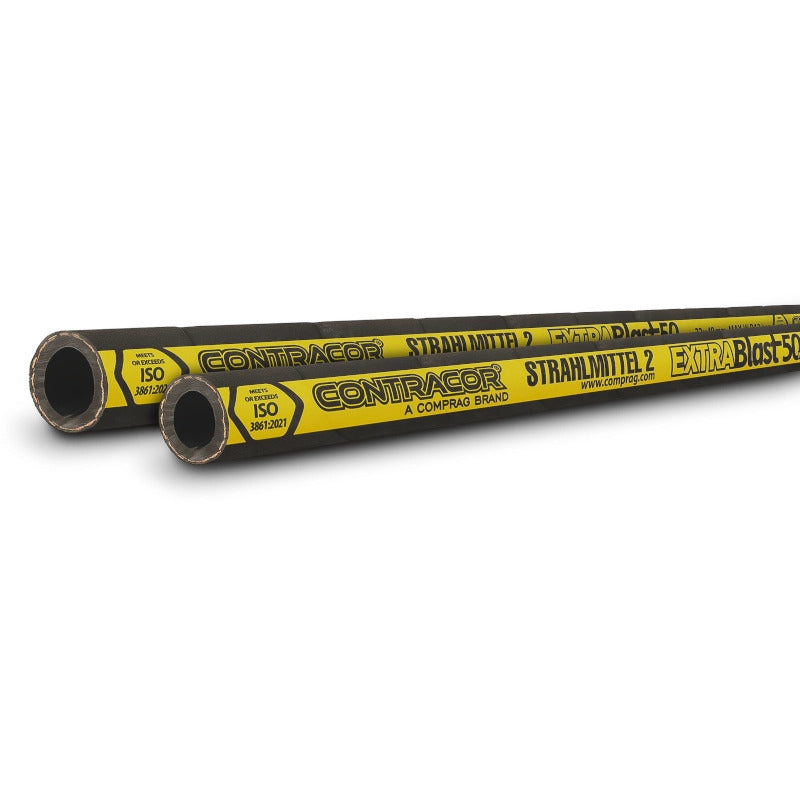

Contracor ExtraBlast “Abrasive 2” – Robust sandblasting hose in Q2 quality
The Contracor ExtraBlast “Abrasive 2” sandblasting hose is a robust and abrasion-resistant abrasive media hose for professional sandblasting applications. It was developed for the reliable transport of highly abrasive blasting media such as steel grit, corundum, garnet sand and glass beads.
The smooth and abrasion-resistant inner tube supports consistent abrasive media transport and reduces unnecessary pressure losses within the hose line. The multi-layer construction with wound textile plies provides the required pressure resistance and dimensional stability.
Thanks to its antistatic construction, the ExtraBlast prevents the dangerous accumulation of electrostatic charges during abrasive media transport. The hose is designed for an operating pressure of up to 12 bar and is available with inner diameters of 13, 19, 25 and 32 mm.
Your benefits at a glance
- ✅ Robust sandblasting hose for professional use
- ✅ Q2 quality – Contracor designation “Abrasive 2”
- ✅ Suitable for highly abrasive blasting media
- ✅ Abrasion value of max. 50 mm³ according to DIN ISO 4649:2013
- ✅ Smooth and abrasion-resistant inner tube
- ✅ Antistatic hose construction
- ✅ Electrical resistance of less than 1 MΩ
- ✅ Multi-layer reinforcement with wound textile plies
- ✅ Operating pressure up to 12 bar
- ✅ Burst pressure up to 36 bar
- ✅ Safety factor 3:1
- ✅ Wide temperature range from −30 °C to +80 °C
- ✅ Available with inner diameters of 13, 19, 25 and 32 mm
- ✅ Available in hose lengths of 5, 20 and 40 m
- ✅ Suitable for numerous mobile and stationary blasting systems
1. Outer cover - SBR/NBR, black, antistatic, fabric-patterned
2. Plies - Wound textile plies
3. Inner tube - NR/BR, black, smooth, antistatic, abrasion-resistant. Average abrasion max. 50 mm³ according to DIN ISO 4649:2013
Technical data
| Feature | Value |
|---|---|
| Product series | ExtraBlast |
| Contracor designation | Abrasive 2 |
| Quality grade | Q2 |
| Product type | Sandblasting and abrasive blasting hose |
| Operating pressure | 12 bar |
| Burst pressure | 36 bar |
| Safety factor | 3:1 |
| Temperature range | −30 °C to +80 °C |
| Electrical resistance | < 1 MΩ |
| Abrasion value | Max. 50 mm³ according to DIN ISO 4649:2013 |
| Inner tube | Black, smooth, antistatic and abrasion-resistant |
| Reinforcement | Wound textile plies |
| Outer cover | Black, antistatic and fabric-patterned |
| Available inner diameters | 13, 19, 25 and 32 mm |
| Available hose lengths | 5, 20 and 40 m, depending on the diameter |
Variants and dimensions
| Design | Inner diameter | Outer diameter | Hose length | Item number |
|---|---|---|---|---|
| ExtraBlast-13 | 13 mm | 27 mm | 5 m | 10112110 |
| ExtraBlast-13 | 13 mm | 27 mm | 20 m | 10112111 |
| ExtraBlast-13 | 13 mm | 27 mm | 40 m | 10112109 |
| ExtraBlast-19 | 19 mm | 33 mm | 20 m | 10112112 |
| ExtraBlast-19 | 19 mm | 33 mm | 40 m | 10112100 |
| ExtraBlast-25 | 25 mm | 39 mm | 20 m | 10112113 |
| ExtraBlast-25 | 25 mm | 39 mm | 40 m | 10112101 |
| ExtraBlast-32 | 32 mm | 48 mm | 20 m | 10112114 |
| ExtraBlast-32 | 32 mm | 48 mm | 40 m | 10112102 |
The 5-meter roll length is available exclusively for the ExtraBlast-13 with a 13 mm inner diameter. The 19, 25, and 32 mm diameters are available in 20- or 40-meter rolls.
Robust construction for abrasive blasting media
During sandblasting, the blasting medium is transported through the hose to the blast nozzle at high speed. As a result, the hose's inner tube is continuously exposed to severe abrasive wear.
The ExtraBlast features a specially designed, abrasion-resistant inner tube for this type of use. With an average abrasion value of no more than 50 mm³ according to DIN ISO 4649:2013, it offers a good service life for typical industrial and commercial blasting applications.
The smooth inner surface supports an even material flow and reduces turbulence and unnecessary flow resistance within the hose line.
Suitable for numerous blasting media
The Contracor ExtraBlast is designed for conveying highly abrasive media. These include, among others:
- Steel shot
- Angular steel grit
- Aluminum oxide
- Garnet sand
- Glass beads
- Mineral reusable blasting media
- Other dry, free-flowing blasting media
Whether a particular blasting medium can be used depends not only on its hardness, but also on particle size, particle shape, bulk density, and the design of the entire blasting system.
The hose is intended exclusively for dry blasting media with sufficient flowability. Damp or clumped material can impair the transport of the blasting media and lead to blockages.
Antistatic hose construction
When transporting dry blasting media, friction can generate an electrostatic charge. The ExtraBlast therefore features an antistatic hose construction with an electrical resistance of less than 1 MΩ.
The antistatic design supports the controlled dissipation of electrostatic charges. This requires the hose to be properly integrated into the grounding and safety concept of the entire blasting system.
The hose, couplings, blasting unit, blast gun or nozzle holder, and other conductive system components must be installed and grounded in accordance with the manufacturer's specifications.
The conductive or antistatic hose construction does not replace proper grounding of the entire blasting system. Equipotential bonding must be checked and ensured during installation.
Textile reinforcements for pressure resistance and stability
Woven textile reinforcements are located between the inner and outer layers. This reinforcement absorbs the compressive forces that occur during operation and stabilizes the hose against impermissible expansion.
The multilayer construction permits an operating pressure of up to 12 bar. The specified burst pressure is 36 bar, resulting in a 3:1 safety factor.
Burst pressure is not an allowable operating parameter. The hose may only be used continuously within the specified maximum operating pressure.
Which hose size is right?
The inside diameter of a sandblasting hose affects the possible air and abrasive flow rate, as well as the pressure loss between the blasting machine and blast nozzle. The hose size should therefore match the nozzle size, hose length, and compressor capacity.
| Inside diameter | Typical application |
|---|---|
| 13 mm | Compact blasting machines, short hose lines, and smaller nozzles |
| 19 mm | Mobile blasting work with medium air and abrasive requirements |
| 25 mm | Professional pressure blasting machines and medium to large nozzles |
| 32 mm | High air volumes, larger nozzles, and long blast hose lines |
The inside diameter of the blast hose should generally be approximately three to four times the nozzle inside diameter. For longer lines, a larger hose cross-section may be required to limit pressure losses.
Hose diameter and pressure loss
An undersized blast hose increases flow velocity and pressure loss. As a result, less operating pressure may be available at the blast nozzle, even if the compressor and blasting machine are adequately sized.
A larger inside diameter reduces flow resistance and can enable better performance at the nozzle, particularly with long hose lines. At the same time, a larger hose is heavier and less flexible.
The selection should therefore strike a sensible balance between airflow, hose length, maneuverability, and nozzle size.
Selecting the roll length
Depending on the inside diameter, ExtraBlast is available in 5, 20, or 40 meter rolls. The hose length should be selected so that the intended working area can be reached without unnecessary extensions.
A longer hose line provides a larger range of movement, but also causes additional pressure losses. Excess hose length should not lie in tight loops during operation.
- 📌 5 m: short connection or compact mobile system
- 📌 20 m: typical mobile and stationary blasting applications
- 📌 40 m: large working radius or custom hose assembly
Installing hose couplings and nozzle holders
Suitable blast couplings and nozzle holders are required for connecting the blasting machine and blast nozzle, matched to the respective hose outside diameter.
The connection fittings must be suitable for the hose type used, the outer diameter, and the maximum operating pressure. They must be installed with the specified mounting screws in accordance with the manufacturer's instructions.
An appropriate coupling safety device must also be used between interconnected blast couplings. Seals, screws, and securing elements must be regularly checked for condition and tight fit.
When selecting a blast coupling or nozzle holder, the relevant outer diameter of 27, 33, 39, or 48 mm is particularly important, not just the inner diameter.
🔧 Applications
- Mobile pressure blasting units
- Stationary sandblasting systems
- Sandblasting cabinets
- Blast rooms
- Surface preparation in steel construction
- Metalworking and mechanical engineering
- Tank and equipment construction
- Vehicle and commercial vehicle repair
- Corrosion protection work
- Removal of rust, mill scale, and old coatings
- Surface preparation before painting or coating
- Blasting work with steel grit, corundum, or garnet sand
Temperature-resistant from −30 °C to +80 °C
The ExtraBlast is designed for a wide temperature range from −30 °C to +80 °C. This allows the hose to be used both in cooler workshop and outdoor areas and at higher ambient temperatures.
The specified temperature refers to the hose's permissible operating conditions. Additional exposure to hot workpieces, flying sparks, open flames, or aggressive chemicals must be avoided.
📌 Safety and application instructions
- Do not exceed the maximum operating pressure of 12 bar
- Inspect the hose for damage before every use
- Use only compatible couplings and nozzle holders
- Fit coupling connections with suitable safety devices
- Do not drive over the hose or crush it with heavy components
- Avoid tight kinks and excessive bend radii
- Protect against sharp edges and hot surfaces
- Ensure an antistatic connection and proper grounding of the system
- Replace worn or damaged hoses immediately
- Fully depressurize the hose before carrying out maintenance work
Regular inspection and maintenance
Sandblasting hoses are subject to continuous internal wear from the abrasive media flowing through them. From the outside, the hose may initially appear undamaged despite an already reduced wall thickness.
The ExtraBlast should therefore be inspected regularly along its entire length. Areas subject to particularly heavy wear are often located near couplings, nozzle holders, tight hose bends, and points where the hose is dragged across the ground.
- Check the outer cover for cuts, cracks, and abrasion
- Feel along the hose for soft or unusually thin areas
- Check that couplings and nozzle holders are securely fitted
- Regularly check fastening screws according to the manufacturer's specifications
- Inspect seals for wear
- Check electrical conductivity and grounding connection
- Do not continue using severely worn hose sections
ExtraBlast or SuprimBlast?
| Feature | ExtraBlast | SuprimBlast |
|---|---|---|
| Contracor designation | Abrasive 2 | Abrasive 1 |
| Abrasion value | Max. 50 mm³ | Max. 35 mm³ |
| Operating pressure | 12 bar | 12 bar |
| Temperature range | −30 °C to +80 °C | −30 °C to +80 °C |
| Positioning | Robust standard quality Q2 | Premium version with high abrasion resistance |
ExtraBlast is a robust blast hose for a wide range of professional sandblasting applications. For particularly high operating times or extremely abrasive media, Contracor SuprimBlast offers even greater wear resistance, with a lower maximum abrasion value of 35 mm³.
Why Contracor ExtraBlast?
Contracor ExtraBlast combines a robust hose construction with high pressure resistance, antistatic properties, and an abrasion-resistant inner tube. This makes it a reliable abrasive hose for mobile and stationary sandblasting systems.
The four available inside diameters allow the hose to be matched to the nozzle size, compressor capacity, and required hose length. The choice of different roll lengths means the hose can be used both as a short connection and for larger working radii.
With an operating pressure of 12 bar, a safety factor of 3:1, and a maximum abrasion value of 50 mm³, ExtraBlast is an economical solution for regular professional blasting operations.
FAQ – Frequently asked questions
What is ExtraBlast used for?
ExtraBlast is used to convey compressed air and abrasive between a sandblasting machine and the blast nozzle.
What does “Abrasive 2” mean?
“Abrasive 2” is Contracor’s designation for this ExtraBlast hose series. It distinguishes this product line from the more abrasion-resistant SuprimBlast version, “Abrasive 1.”
What quality grade does the hose have?
ExtraBlast is offered in robust Q2 quality.
What inside diameters are available?
The hose is available with inside diameters of 13, 19, 25, and 32 mm.
What outside diameters do the variants have?
ExtraBlast-13 has an outside diameter of 27 mm, ExtraBlast-19 of 33 mm, ExtraBlast-25 of 39 mm, and ExtraBlast-32 of 48 mm.
What roll lengths are available?
ExtraBlast-13 is available in 5, 20, and 40 m lengths. The 19, 25, and 32 mm sizes are offered in 20 and 40 m lengths.
Is every size available as a 5 m roll?
No. The 5 m roll is available exclusively for ExtraBlast-13 with a 13 mm inside diameter.
What is the maximum operating pressure?
The maximum permissible operating pressure is 12 bar.
What is the burst pressure?
The specified burst pressure is 36 bar. This value must not be used as the permissible operating pressure.
What safety factor does the hose have?
The safety factor is 3:1.
How abrasion-resistant is ExtraBlast?
The manufacturer specifies an average abrasion value of no more than 50 mm³ in accordance with DIN ISO 4649:2013.
Is the hose antistatic?
Yes. The hose construction is antistatic and has an electrical resistance of less than 1 MΩ.
Does the hose still need to be grounded?
Yes. The antistatic hose construction does not replace proper grounding or equipotential bonding of the entire blasting system.
Which abrasives can be conveyed?
The hose is suitable for steel grit, corundum, garnet sand, and glass beads, among other dry, free-flowing abrasives.
Can wet abrasive be used?
Moist or clumped material should not be conveyed, as it can cause blockages and uneven abrasive flow.
Which hose size is suitable for my blast nozzle?
As a general rule of thumb, the inside diameter of the blast hose should be approximately three to four times the nozzle inside diameter. Hose length and air capacity must also be taken into account.
Why should the blast hose not be selected too small?
An inside diameter that is too small causes high pressure losses and can significantly reduce performance at the blast nozzle.
Which couplings are required?
Blast couplings and nozzle holders are required to match the respective hose outside diameter of 27, 33, 39, or 48 mm.
Are couplings included?
No. ExtraBlast is supplied as a hose reel. Suitable couplings, nozzle holders, and safety cables must be selected separately.
Can the 40 m hose be shortened?
Yes. A hose reel can be cut to the required length and then fitted with suitable fittings.
What temperature range can the hose be used in?
The permissible temperature range is −30 °C to +80 °C.
How long does a sandblasting hose last?
Service life depends on the abrasive, operating pressure, hose routing, nozzle size, duration of use, and external mechanical stress. A general service life therefore cannot be specified.
How can I tell if a hose is worn?
Signs include soft or thin areas, visible scuff marks, cracks, leaks, or heavy wear near couplings and hose bends.
What is the difference between ExtraBlast and SuprimBlast?
ExtraBlast has a maximum abrasion value of 50 mm³. The more abrasion-resistant SuprimBlast reaches a maximum of 35 mm³ and is intended for particularly wear-intensive applications.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card data and do not have access to your credit card information.
Additionally, we offer you many other payment methods at the Checkout! through mollie.
